Blasting Drill Rigs

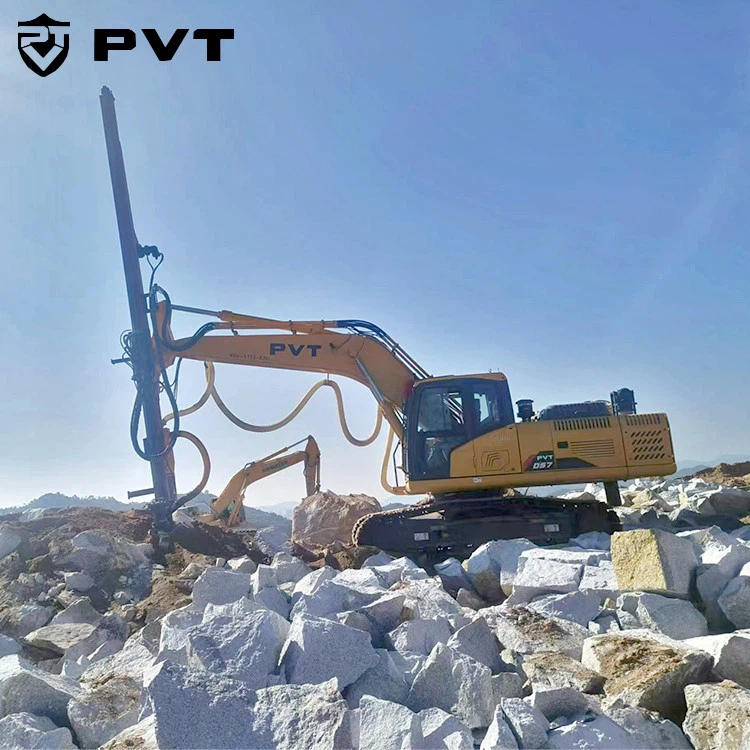

Introducing the PVT-DS blasting drill, a high-performance drilling solution. It offers selectable impact power, a drilling range of 76-102mm/76-115mm, and is compatible with T38/T45/T51 drill rods. It excels in mining, quarrying, and construction. It's the ideal choice for efficient and versatile rock drilling.
Advantages of PVT-DS7 Blasting Drill Rigs
Mobility & Adaptability
• Reinforced frame and quick-disconnect drill mast cut relocation time by 40%-ideal for frequent site transfers in quarry operations
Efficient Performance
• Energy-saving design reduces fuel consumption by 12% vs. standard models, certified to ISO 9001 manufacturing standards
Operator Comfort
• Climate-controlled cabin (20-26℃ adjustable) with suspension seat reduces fatigue during 8+ hour shifts
Technical Specifications
|
Impact power(kW) |
18/21(optional) |
|
Hole Range(mm) |
φ76～102/φ76～115 |
|
Drill rod |
T38,T45 / T45,T51 |
|
Hole depth(mm) |
0~6000 |
|
Deflection angle |
L/R 20° |
|
Air compressors |
screw-type |
|
Air compressor flow rate(m3/min) |
6 |
|
Engine power/speed |
127kW/2200rpm |
|
Hydraulic flow rate(L/min) |
220×2 |
|
Dust collector air volume(m3/min) |
24max |
|
Crawling speed(km/h) |
2.9/4.3 |
|
Gradeability |
50°(30°) |
|
L×W×H(mm) |
14100×2800×2977 |
|
Weight(kg) |
21000 |
About Us
FAQ
Q: 1.What is the drilling depth and aperture range of the PVT-DS7 blasting drill rigs?
A: The single drilling depth can reach up to 6 meters, and the aperture range is 76–102 mm. With optional configurations, it can be extended to 76–127 mm.
Q: 2. What are the extreme environmental conditions for which this drilling rig is suitable?
A: It can be used in extreme harsh environments with a temperature range of -35°C to 50°C and an altitude of 5,000 meters.
Q: 3. Does the 15% rod changing time of traditional drilling rigs have a significant impact on overall operational efficiency?
A: Yes, it has a notable impact. A higher proportion of rod changing time means a substantial amount of time is wasted on non-rock drilling operations during the entire work process, which reduces overall operational efficiency. PVT-DS drilling rig solve this problem.
