Hydraulic Piling Drilling Rig
Equipped with a 11 m³/min screw air compressor operating at 15 bar, it is suitable for various hard rock conditions.this machine is widely used in mining, water conservancy, and infrastructure construction projects.
Hole Diameter Range: φ76～180mm
Advantages of PVT-BS6 Hydraulic Piling Drilling Rig
1.Track-mounted & 360° rotating platform – Flexible positioning for versatile drilling
01
2.90° side drilling capability – Ideal for confined spaces and vertical surfaces
02
3.15-24m lifting height – Adapts to various working elevations
03
4.34MPa plunger pump pressure – Delivers powerful hydraulic performance
04
5.Integrated air compressor – Self-contained for immediate operation
05
Technical Specifications
|
Weight |
31800Kg |
|
Engine Power/speed |
190kW/2000rpm |
|
Hydraulic flow rate(L/min) |
2×248 |
|
Hydraulic system pressure(Mpa) |
33 |
|
Hydraulic oil tank(L) |
190 |
|
Fuel oil tank(L) |
480 |
|
Track width(mm) |
3190 |
|
Track length(mm) |
4660 |
|
Hole Range(mm) |
φ76～180 |
|
Hole depth(mm) |
0~10000 |
|
Feed force(kN) |
0~69 |
|
Drill rod rotational speed(r/min) |
0~240 |
|
Drill rod output torque(N.m) |
0~3900 |
|
Horizontal lifting height (m) |
15 |
|
Drill rig side swing angle |
0~90° |
|
Air compressor |
Screw-type |
|
Air compressor capacity(m3/min) |
11 |
|
Air compressor discharge pressure(bar) |
15 |
|
Crawling speed(km/h) |
3.5/5.1 |
|
Gradeability |
50% |
|
L×W×H(mm ) |
14920×3190×3350 |
About Us
FAQ

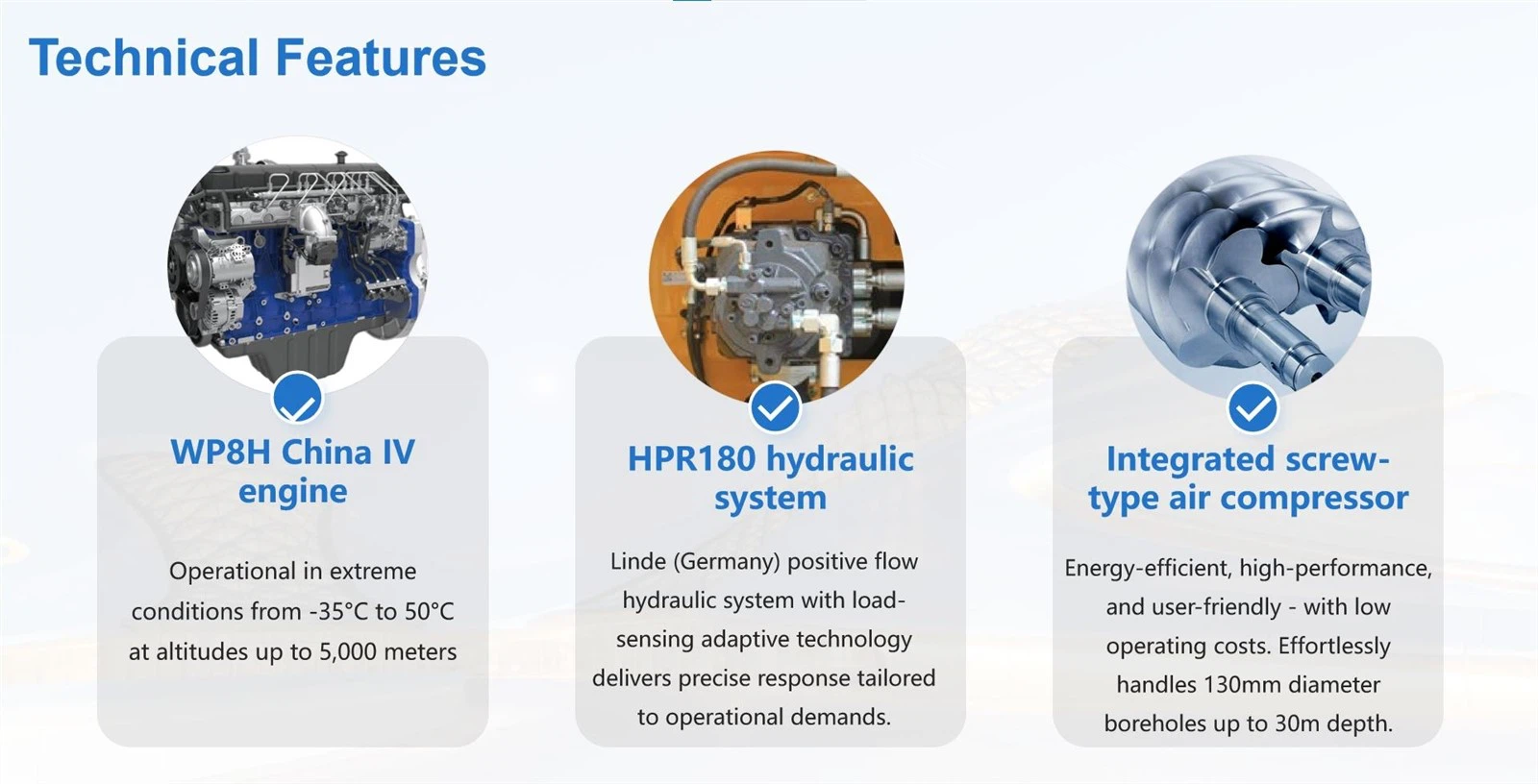

Q: 1. What is the core power of the PVT-BS6 drilling rig?
A: It adopts a "golden core" composed of a Weichai National IV engine and a Linde hydraulic system, which can save more than 20% fuel compared with hydraulic models of the same tonnage.
Q: 2. What are the advantages of the hydraulic system?
A: Equipped with a 30-ton hydraulic system with dual 150 main pumps, it provides strong power and supports a planetary gear drive system with high speed and torque for drill rods, enabling cutting drilling and down-the-hole impactor rock drilling.
